High Biological Activity MBBR Filter Media K1 Media Filter For Koi
Pond Aquarium
Tongxiang SmallBoss Special Plastic Products Co., Ltd. is a
comprehensive hi-tech enterprise established in 1992 specializing
in the research and development, production and sale of
environmental friendly products and MBBR biological filter
media.Small Bosscompany has cooperated with Singapore Biological
Filter Media Research Institute, Shanghai University and Wuhan
University to carry out research and development of water treatment
filler since 2004. After years of efforts, Small Boss has
successfully developed a number of new Biological Filter Medias and
obtained 75 national patents for the products including 12 patents
for MBBR biological filter media
Small Boss MBBR Filter Media Advantage
Rapid carrier bio film formation mechanism
Super decarburization, ammonia nitrogen removal capacity
Excellent resistance to shock load performance
Flexible way of engineering application
Simple operation and maintenance
Long service life-100% virgin HDPE material.
Deoxidation and phosphorus removal effect is good
Small Boss MBBR Filter Media Application
The Sewage plant upgrade project , improve the standard and
quantity
New sewage treatment project of MBBR and Biological Aerated Filter
process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal.
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower

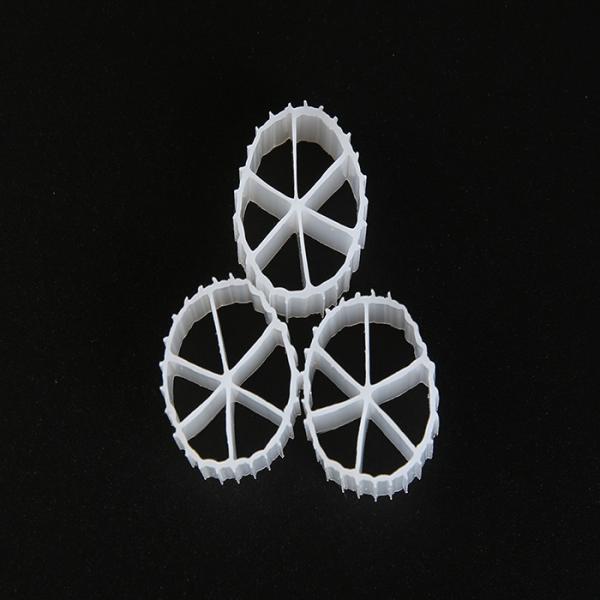

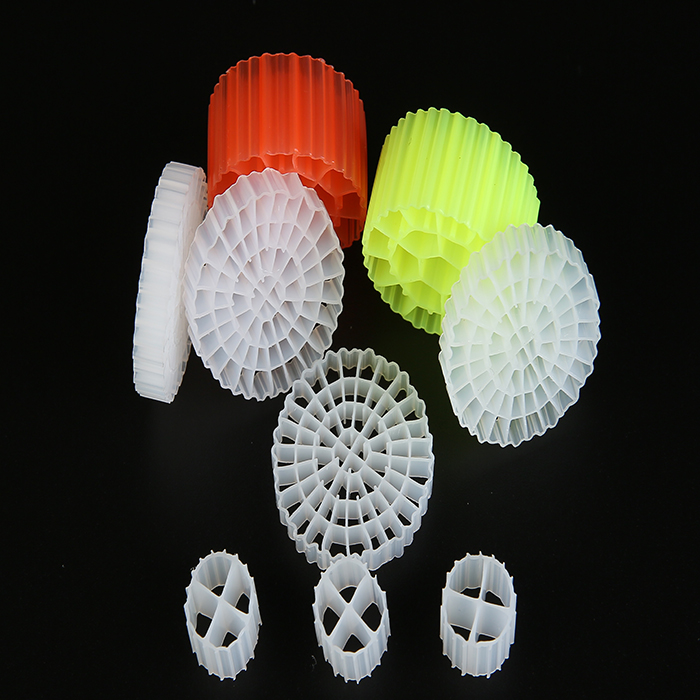

Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the
cubic metre. These products are suited to fluidized or moving bed
tank systems. These are also called "Biofilm Reactor (MBBR)"systems
and are used for treatment of water and wastewater.
Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in
suspension,the filter media is self-cleaning ,requiring no
maintenance.This allows the filter to reach optimum effeciveness
without the disturbance of periodic maintenance,avoiding
unnecessary loss of bacteria within the filter.This allows
stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes
media used in fish farming and waste treatment .The design creates
an environment for effective nitrification to take place .Twater
flow is created by aeration tha circulates the media throughout the
vessel .This high suface area of these products traslates into a
small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through
aeration,the media is self-cleaning,Requiring no maintenance.This
allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary
loss of bacteria and subsequent ammonia and nitrite spikes in the
system.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration
(days) | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >630,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥15 | >930,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥15 | >990,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥15 | >260,000 |
| PE05 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE06 | Φ25×10 | >500 | 5-15 | 400-1200 | <65 | ≥15 | >118,000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥15 | >33,000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥15 | >154,000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥15 | >230,000 |
| PE64 | Φ25×4 | >1200 | 5-15 | 500-1400 | <65 | ≥15 | >228,750 |
