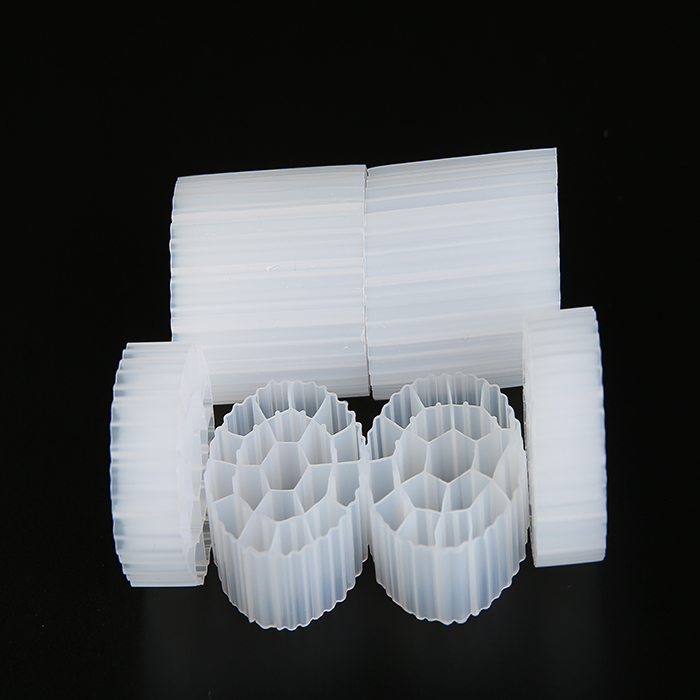

Virgin HDPE MBBR Filter Media K1 Micro Filter For Biological
Deodorization Tower
Small Boss MBBR Filter Media Advantage
- Rapid carrier bio film formation mechanism
- Super decarburization, ammonia nitrogen removal capacity
- Excellent resistance to shock load performance
- Flexible way of engineering application
- Simple operation and maintenance
- Long service life-100% virgin HDPE material.
- Deoxidation and phosphorus removal effect is good
Small Boss MBBR Filter Media Application
- The Sewage plant upgrade project , improve the standard and
quantity
- New sewage treatment project of MBBR and Biological Aerated Filter
process
- Biochemical treatment of reclaimed water
- River regulation denitrification and phosphorus removal
- Aquaculture in addition to ammonia nitrogen, water purification
- Biological filter media is used for biological deodorization tower
MBBR Technology
Technical Details
The aerated MBBR uses, as the activated sludge process, the whole
volume of an open tank. It is defined as a biofilm system, as the
biomass is growing on carriers that move freely within the reactor
volume and are kept within the reactors by a sieve at the reactor
outlet. The system can be used either for aerobic or anoxic
processes. In aerobic processes the biofilm carriers are kept in
suspension by the agitation created by air from aeration diffusers,
while in anoxic processes a mixer keep the carriers in movement. A
schematic of the principle in an implementation of the WOCK OLIVER
MBBR technology is shown below
Small Boss MBBR Filter Media Package:
0.1m3/woven bag; 1m3/woven bag;1m3/carton .
20ft container could load 30m3. 40HC container load 70m3
Product introduction
MBBR filter media is a novel biologically active carrier, it adopts
scientific formula, depending
on the nature of water, blending a variety of beneficial
microorganisms grow quickly attached trace elements in polymer
materials, through a special process modification, constructed,
with more than large surface area, hydrophilic, high biological
activity, biofilm fast, good effect, good impact resistance.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration
(days) | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥15 | >33,000 |
