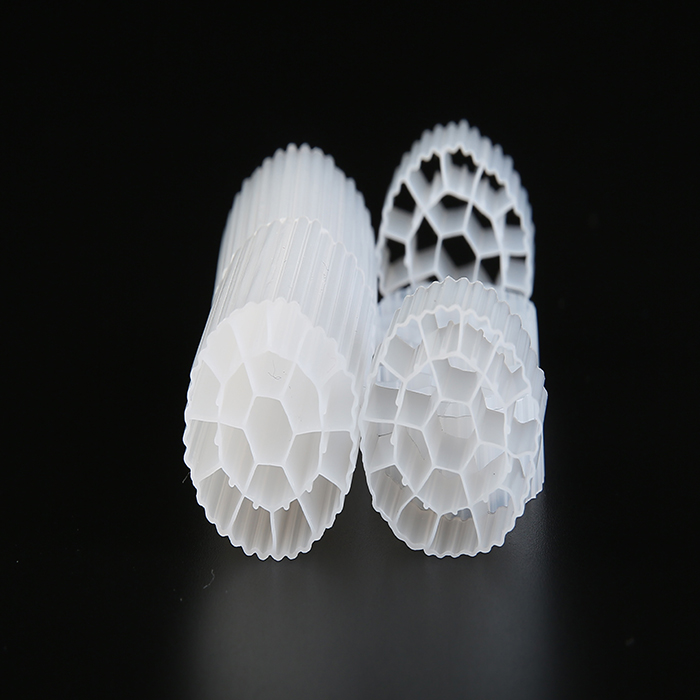

White MBBR Filter Media
Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the
cubic metre. These products are suited to fluidized or moving bed
tank systems. These are also called "Biofilm Reactor (MBBR)"systems
and are used for treatment of water and wastewater.
Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in
suspension,the filter media is self-cleaning ,requiring no
maintenance.This allows the filter to reach optimum effeciveness
without the disturbance of periodic maintenance,avoiding
unnecessary loss of bacteria within the filter.This allows
stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes
media used in fish farming and waste treatment .The design creates
an environment for effective nitrification to take place .Twater
flow is created by aeration tha circulates the media throughout the
vessel .This high suface area of these products traslates into a
small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through
aeration,the media is self-cleaning,Requiring no maintenance.This
allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary
loss of bacteria and subsequent ammonia and nitrite spikes in the
system.
Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs
and 0.75 kgs of 40% protein food per day requires 50 litres of
media.
MBBR Technology
Technical Details
The aerated MBBR uses, as the activated sludge process, the whole
volume of an open tank. It is defined as a biofilm system, as the
biomass is growing on carriers that move freely within the reactor
volume and are kept within the reactors by a sieve at the reactor
outlet. The system can be used either for aerobic or anoxic
processes. In aerobic processes the biofilm carriers are kept in
suspension by the agitation created by air from aeration diffusers,
while in anoxic processes a mixer keep the carriers in movement. A
schematic of the principle in an implementation of the WOCK OLIVER
MBBR technology is shown below
Small Boss MBBR Filter Media Package:
0.1m3/woven bag; 1m3/woven bag;1m3/carton .
20ft container could load 30m3. 40HC container load 70m3
Product introduction
MBBR filter media is a novel biologically active carrier, it adopts
scientific formula, depending
on the nature of water, blending a variety of beneficial
microorganisms grow quickly attached trace elements in polymer
materials, through a special process modification, constructed,
with more than large surface area, hydrophilic, high biological
activity, biofilm fast, good effect, good impact resistance.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration
(days) | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
