High Surface Area MBBR Filter Media White Color Virgin HDPE
Material
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration
(days) | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |

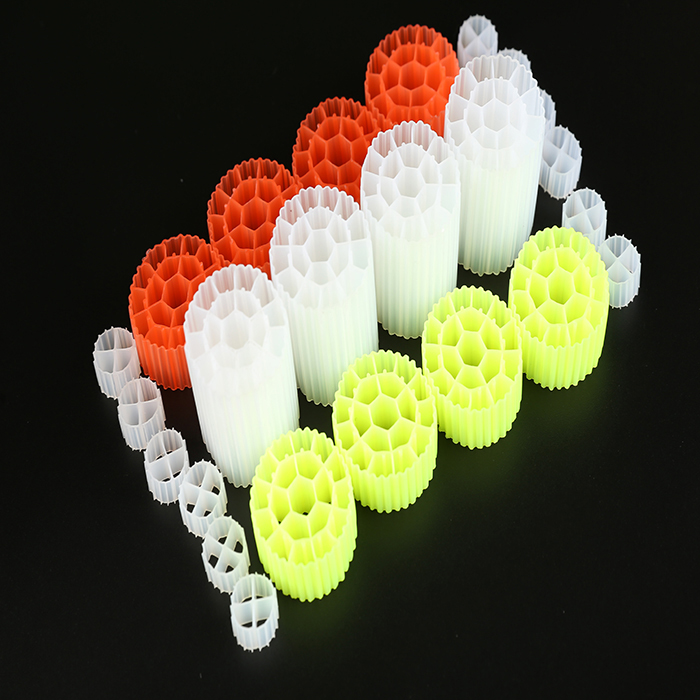

The core of the MBBR technology are the biofilm carriers. They are
designed to provide a large protected surface area for the biofilm
and optimal conditions for the bacteria culturea when the carriers
are suspended in water.
Small Boss has developed several types of carriers with different
shape, size and surface area. This gives us the flexibility to use
the best suitable carrier depending on wastewater characteristics,
pretreatment, discharge standards and available volumes. Currently
we have ten different types of carriers
Small Boss MBBR Filter Media Advantage
Rapid carrier bio film formation mechanism
Super decarburization, ammonia nitrogen removal capacity
Excellent resistance to shock load performance
Flexible way of engineering application
Simple operation and maintenance
Long service life-100% virgin HDPE material.
Deoxidation and phosphorus removal effect is good
Small Boss MBBR Filter Media Application
The Sewage plant upgrade project , improve the standard and
quantity
New sewage treatment project of MBBR and Biological Aerated Filter
process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal.
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
Main feature:
Special formula and production technology, accelerating biological
film formation ;
Larger effective surface area, obtaining more microorganism;
By bio-film decomposing technology, saving sludge return process;
High-efficiency in denitrification and dephosphorization, improving
the water quality;
Lower energy consumption, saving space and shorten technology
process.
MBBR can be used in any kind of Pond, it’s no need special pond,
and it can used the same pond as before if we change the system to
MBBR treatment system, what’s the most important thing is MBBR can
be full use of pond volume.
Accelerate the reaction rate significantly, compared with the
activated sludge process, reaction efficiency 5 ~ 10 times
Simultaneous nitrification and denitrification process,it can be a
good denitrification and phosphorus removal
It is no need bracket, just put in the MBBR filter media directly.
MBBR filter media packing free flow and cutting air bubbles in
water, increase dissolved oxygen in water, save energy consumption
