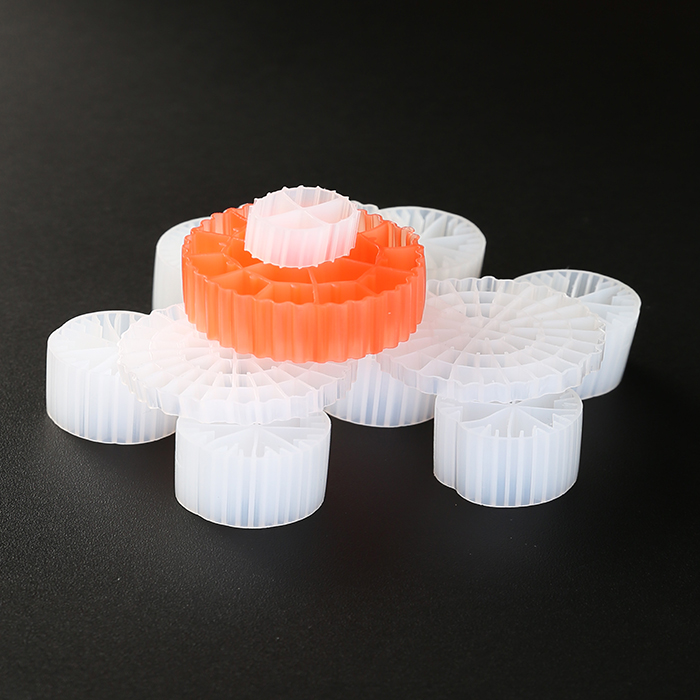

Virgin HIPS Material MBBR Filter Media Floating Micro Media For
Sewage Treatment
Product Introduction
MBBR filter media is a novel biologically active carrier, it adopts
scientific formula, depending
on the nature of water, blending a variety of beneficial
microorganisms grow quickly attached trace elements in polymer
materials, through a special process modification, constructed,
with more than large surface area, hydrophilic, high biological
activity, biofilm fast, good effect, good impact resistance.
Main feature:
Special formula and production technology, accelerating biological
film formation ;
Larger effective surface area, obtaining more microorganism;
By bio-film decomposing technology, saving sludge return process;
High-efficiency in denitrification and dephosphorization, improving
the water quality;
Lower energy consumption, saving space and shorten technology
process.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration
(days) | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
Long service life
Through a special process modification, the filter media have a
good resistance, UV resistance, strong toughness, not easy to aging
and embrittlement, and it has a long service life.

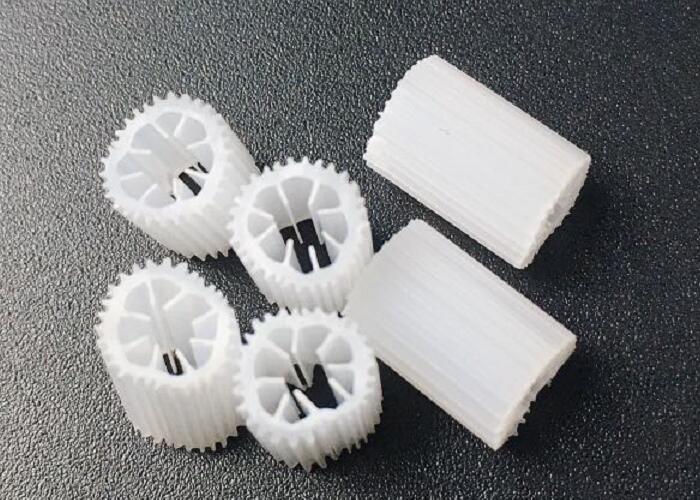

Small Boss MBBR Biofilm Carries
We supply a range of biofilter media, This product is sold by the
cubic metre. These products are suited to fluidized or moving bed
tank systems. These are also called "Biofilm Reactor (MBBR)"systems
and are used for treatment of water and wastewater.
Self cleaning due to turbulence:
Due to the turbulent movement of the biofilter media in
suspension,the filter media is self-cleaning ,requiring no
maintenance.This allows the filter to reach optimum effeciveness
without the disturbance of periodic maintenance,avoiding
unnecessary loss of bacteria within the filter.This allows
stable,low levels of ammonia and nitrite within the water.
The first few of these products are similar to the patented kaldnes
media used in fish farming and waste treatment .The design creates
an environment for effective nitrification to take place .Twater
flow is created by aeration tha circulates the media throughout the
vessel .This high suface area of these products traslates into a
small physical area needed for the biofiltration unit.
Due to vigorous mixing of the kaldnes-like media through
aeration,the media is self-cleaning,Requiring no maintenance.This
allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary,preventing the unnecessary
loss of bacteria and subsequent ammonia and nitrite spikes in the
system.
Media volume needed:
with good turbulence and aeration, a feed rate of between 0.25 kgs
and 0.75 kgs of 40% protein food per day requires 50 litres of
media.
