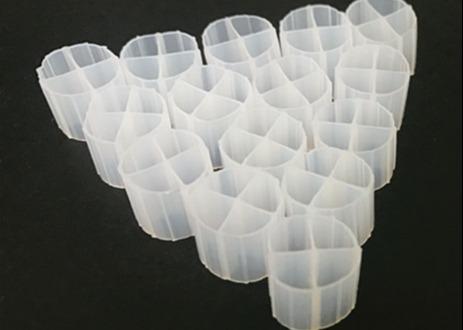

White Color MBBR Filter Media For Anaerobic Tank With Virgin HDPE
Material And 12*9mm Size
Product introduction
MBBR filter media is a novel biologically active carrier, it adopts
scientific formula, depending
on the nature of water, blending a variety of beneficial
microorganisms grow quickly attached trace elements in polymer
materials, through a special process modification, constructed,
with more than large surface area, hydrophilic, high biological
activity, biofilm fast, good effect, good impact resistance.
Small Boss MBBR Filter Media Advantage
Rapid carrier bio film formation mechanism
Super decarburization, ammonia nitrogen removal capacity
Excellent resistance to shock load performance
Flexible way of engineering application
Simple operation and maintenance
Long service life-100% virgin HDPE material.
Deoxidation and phosphorus removal effect is good
Small Boss MBBR Filter Media Application
The Sewage plant upgrade project , improve the standard and
quantity
New sewage treatment project of MBBR and Biological Aerated Filter
process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal.
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active
biofilm growing on small specially designed plastic carriers that
are kept suspended in the reactor. The technology utilizes the
advantages of both activated sludge and other biofilm systems (e.g.
biofilters, biorotors etc.) without being restrained by their
disadvantages.
The carriers are designed to provide a large protected surface area
for the biofilm and optimal conditions for the bacteria culture
when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following
applications:
+ For new plants, especially those requiring a small footprint and
easy operation, for BOD/COD and nitrogen removal
+ As a high loading system in front of existing biological
treatment - roughing reactor
+ To increase the amount of nitrifying bacteria in existing
activated sludge system using the WOCK OLIVER carrier in a hybrid
plant to meet ammonia limits
+ To implement post-treatment to existing plants for process
improvement
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration
(days) | Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
