biotube IFAS technology FDA safty material large surface area high
effiency MBBR bio filter media
Biotube IFAS technology large surface area effiency MBBR bio filter
media

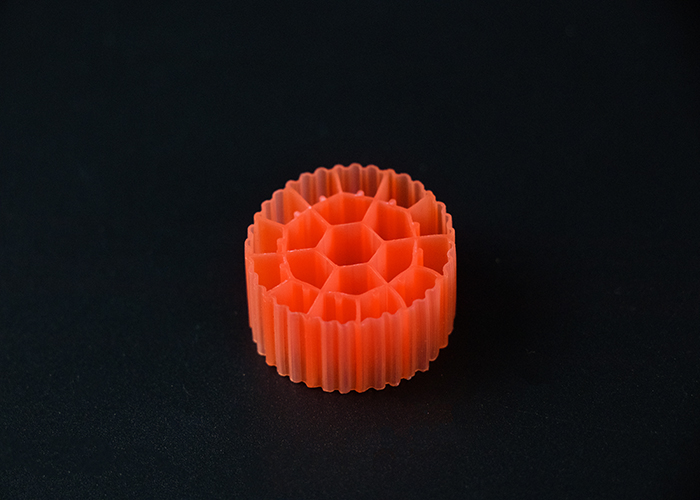

Small Boss MBBR Filter Media ITEM
| Item | PE01 | PE02 | PE03 | PE05 | PE06 | PE07 | PE08 | PE09 | PE10 |
| Size diameter*length(mm) |
12*9 |
11*7 |
10*7 |
25*10 |
25*10 |
35*18 |
5*10 |
15*15 |
25*4 |
| Density(g/cm3) | 0.96-0.98 |
| 0Surface ares (m2/m3) | >800 | >900 | >1000 | >600 | >600 | >350 | >3500 | >900 | >1200 |
What is the process for this MBBR system? MBBR has two steps: it removes the ammonia with slow growing
bacteria that work well in the plastic media carriers. The bacteria
convert the ammonia to nitrate in an aerobic zone then the water
moves to an anoxic zone where glycerine is added for bacteria to
convert the nitrate to nitrogen gas that bubbles out of the water.
The system has an alkalinity dosing system that adjusts the pH and
alkalinity if the nitrifying bacteria are alkalinity-limited.
Small Boss MBBR Filter Media Advantage:
- Rapid carrier bio film formation mechanism
- Super decarburization, ammonia nitrogen removal capacity
- Excellent resistance to shock load performance
- Flexible way of engineering application
- Simple operation and maintenance
- Long service life-100% virgin HDPE material.
- Deoxidation and phosphorus removal effect is good
MBBR Technology and Biofilm Carries:
MBBR technology is based on the biofilm principle with an active
biofilm growing on small specially designed plastic carriers that
are kept suspended in the reactor. The technology utilizes the
advantages of both activated sludge and other biofilm systems (e.g.
biofilters, biorotors etc.) without being restrained by their
disadvantages.
The carriers are designed to provide a large protected surface area
for the biofilm and optimal conditions for the bacteria culture
when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following
applications:
+ For new plants, especially those requiring a small footprint and
easy operation, for BOD/COD and nitrogen removal
+ As a high loading system in front of existing biological
treatment - roughing reactor
+ To increase the amount of nitrifying bacteria in existing
activated sludge system using the WOCK OLIVER carrier in a hybrid
plant to meet ammonia limits
+ To implement post-treatment to existing plants for process
improvements
Small Boss MBBR Filter Media Application
The Sewage plant upgrade project , improve the standard and
quantity
New sewage treatment project of MBBR and Biological Aerated Filter
process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal.
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
Small Boss MBBR Filter Media Advantage
Rapid carrier bio film formation mechanism
Super decarburization, ammonia nitrogen removal capacity
Excellent resistance to shock load performance
Flexible way of engineering application
Simple operation and maintenance
Long service life-100% virgin HDPE material.
Deoxidation and phosphorus removal effect is good
Small Boss MBBR Filter Media Application
The Sewage plant upgrade project , improve the standard and
quantity
New sewage treatment project of MBBR and Biological Aerated Filter
process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal.
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
Small Boss MBBR Filter Media Package:
0.1m3/woven bag; 1m3/woven bag;1m3/carton .
20ft container could load 30m3. 40HC container load 70m3
